One of the Earliest Great Illustrated Books of Mechanical Engineering with 60 Full-Page Copper Engravings
Besson, Jacques. Theatrum instrumentorum et machinarum. Cum Francisci Beroaldi Figurarum declaratione demonstratiua, necnon vbique necessarijs ac vtilissimis Additionibus nunquam hactenus editis auctum atque illustratum: Per Iulium Paschalem. Lyon, Barthélemy Vincent, 1582.

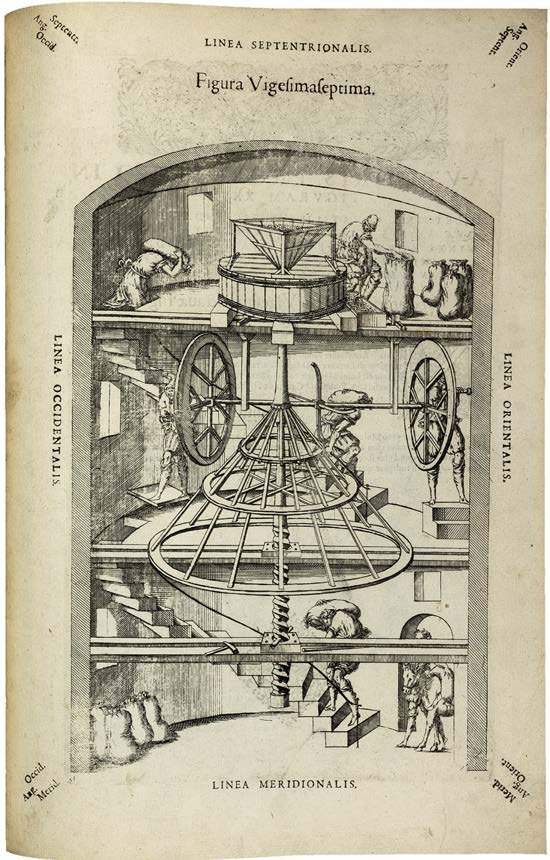

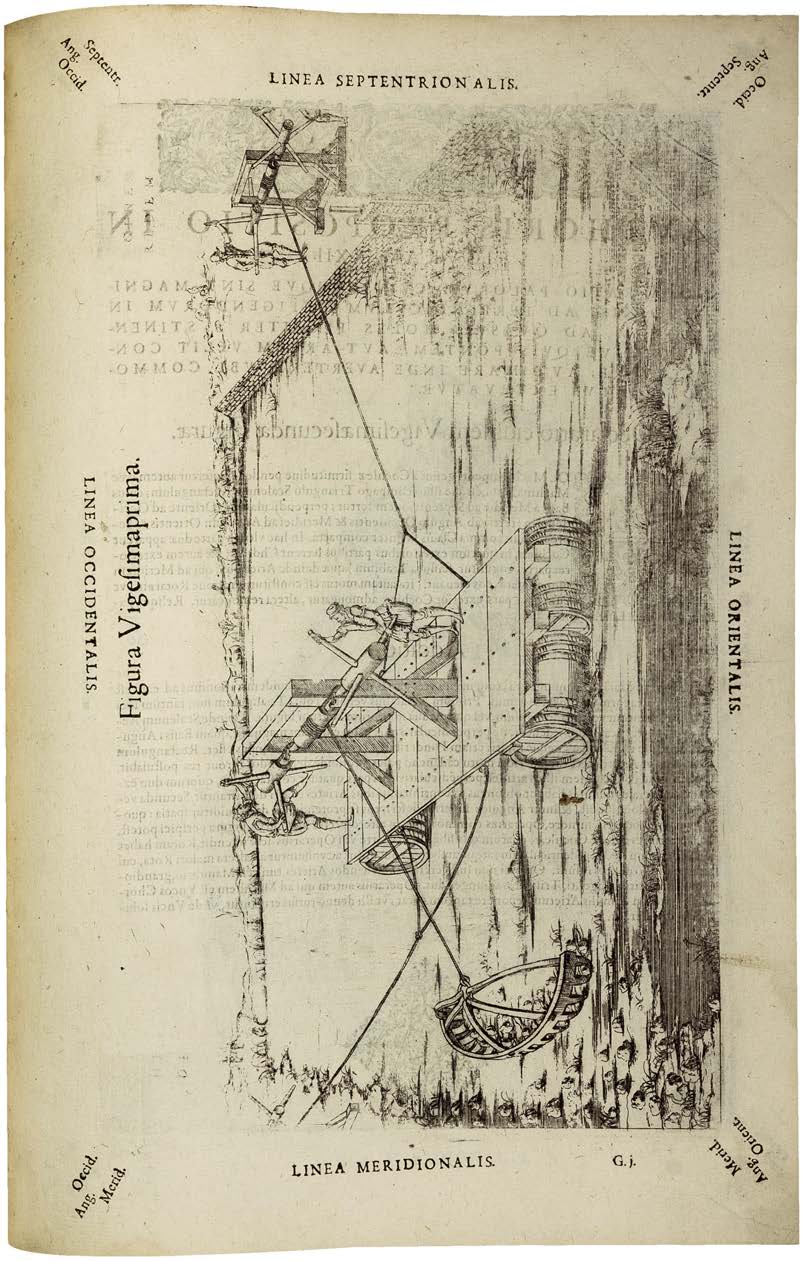

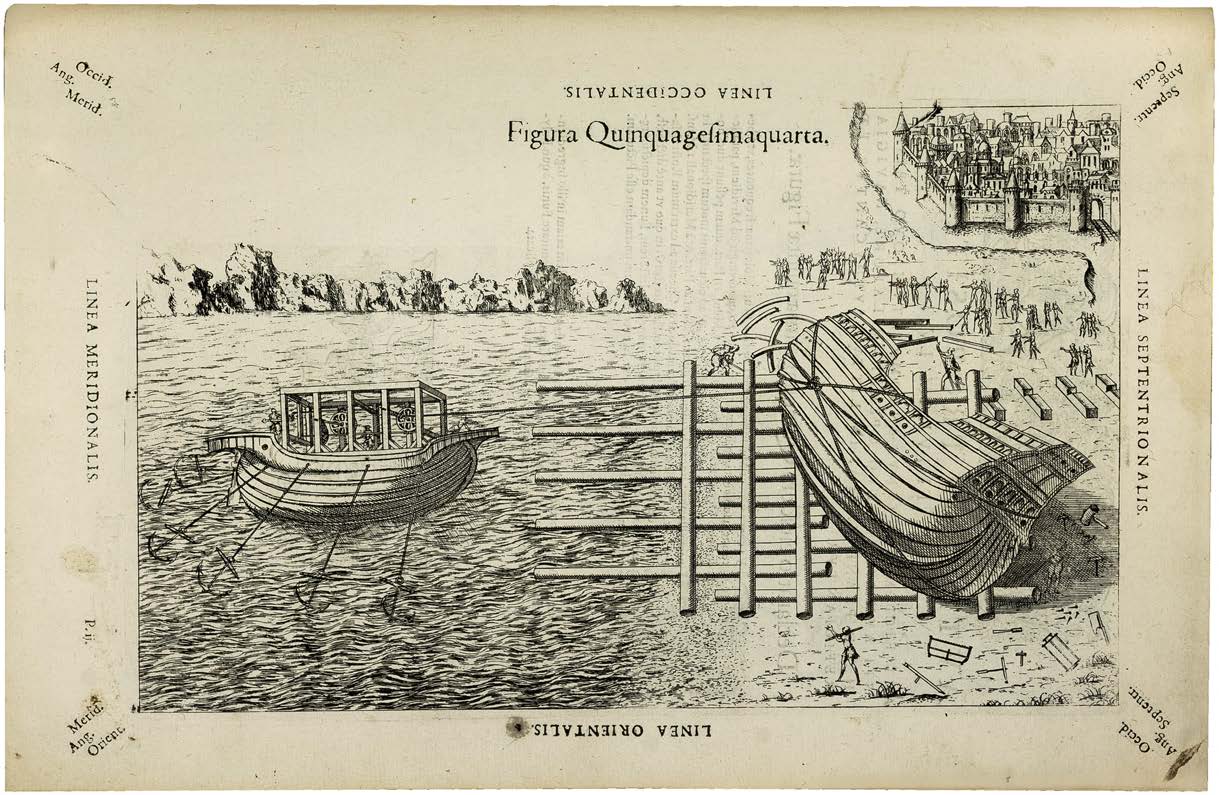

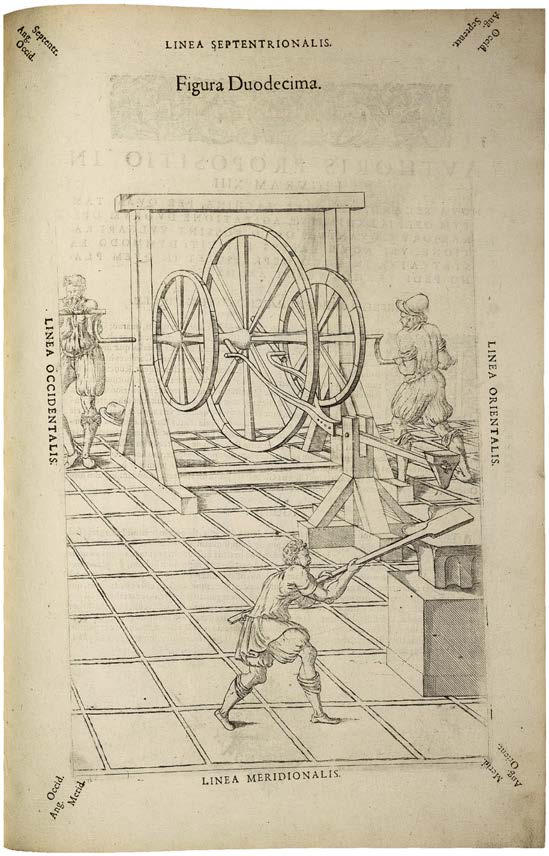

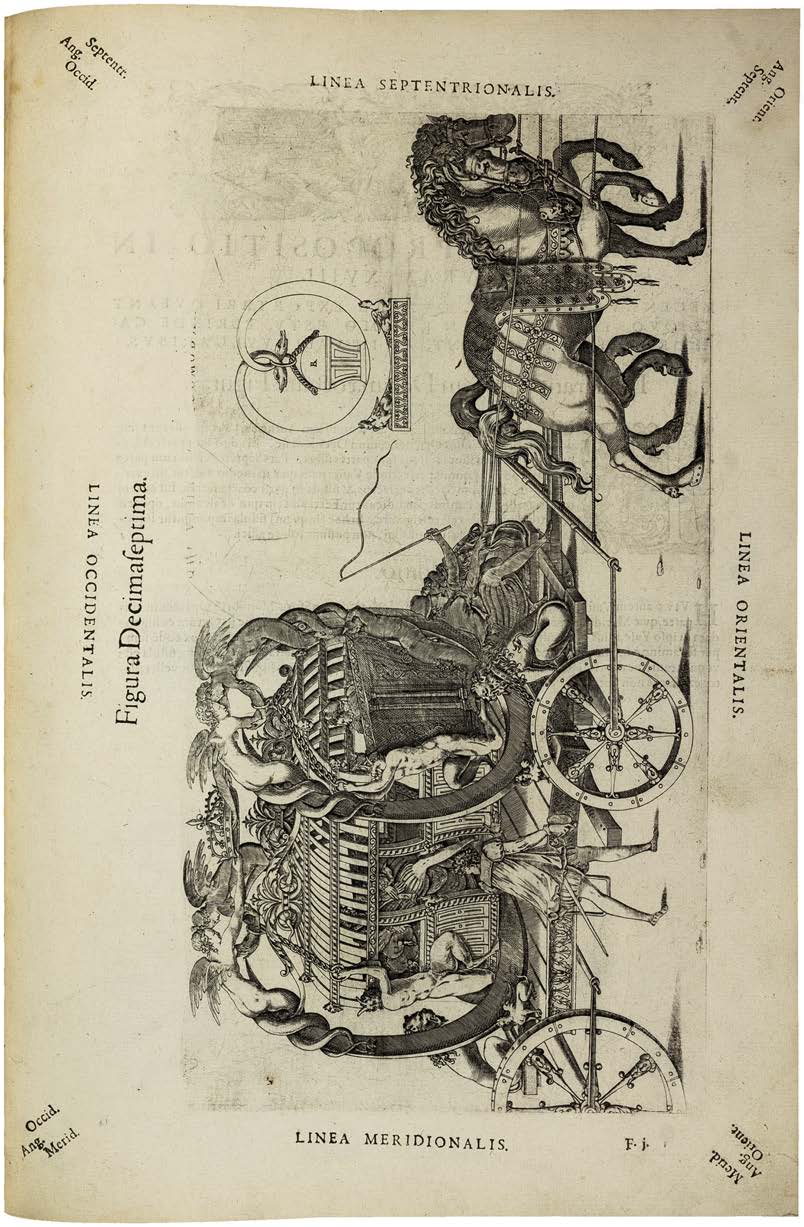

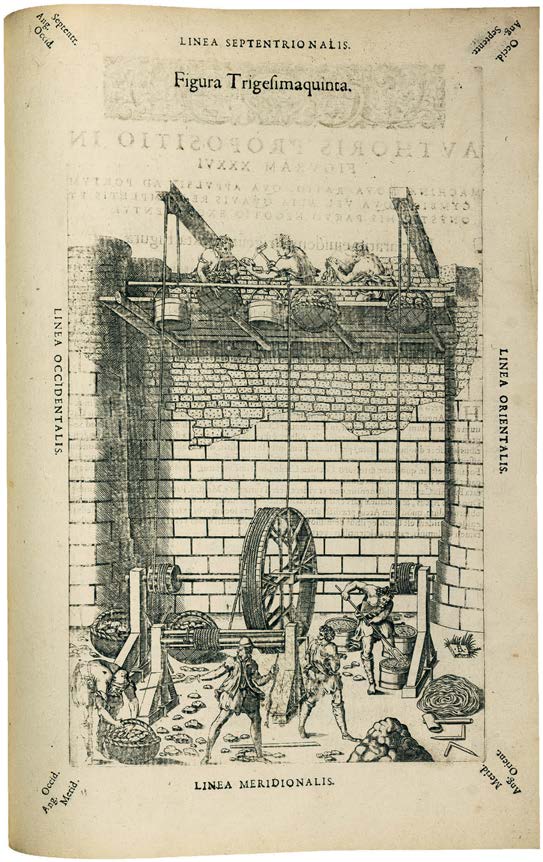

One of the foundational illustrated books of early mechanical engineering and among the great monuments of Renaissance technical imagination: Jacques Besson’s Theatrum instrumentorum et machinarum, containing 60 magnificent full-page copper engravings depicting lathes, cranes, presses, mills, transport vehicles, lifting systems, agricultural machinery, fountains, saws, and other mechanical inventions in elaborate architectural and landscape settings.
The work belongs to the earliest generation of printed engineering books in which mechanics began to emerge from artisanal practice into an intellectual and scientific discipline grounded in geometry, mathematics, and design.
Edition & Bibliographic Information
A-Q4 = 64 leaves.
With large architectural woodcut title border, 60 full-page copper engravings, and numerous elaborate woodcut initials, headpieces, and vignettes. Folio (385 × 256 mm).
Nineteenth-century reddish-brown morocco binding signed “Rivière & Son,” with gilt spine title, gilt fillets on board edges and inner dentelles, marbled endleaves, and gilt edges throughout. Spine lightly rubbed with minor losses; corners with slight wear; occasional minimal dampstaining near beginning and end; a few leaves with small marginal restorations; final eleven leaves with tiny wormtrack in upper blank margin.
The present edition of 1582 was issued by Giulio Paschali with an additional preface and revised editorial material following the earlier posthumous Latin edition of 1578.
The World in Motion
Jacques Besson served as mathematician and engineer to King Francis II of France and published his first work on machines already in 1569, partly as a means of protecting and publicizing his inventions.
The Theatrum instrumentorum et machinarum stands at a decisive historical threshold: the moment when mechanics slowly transformed from practical craft into theoretical science. Renaissance engineers increasingly sought to elevate the “mechanical arts” onto the intellectual foundations of geometry, mathematics, and natural philosophy.

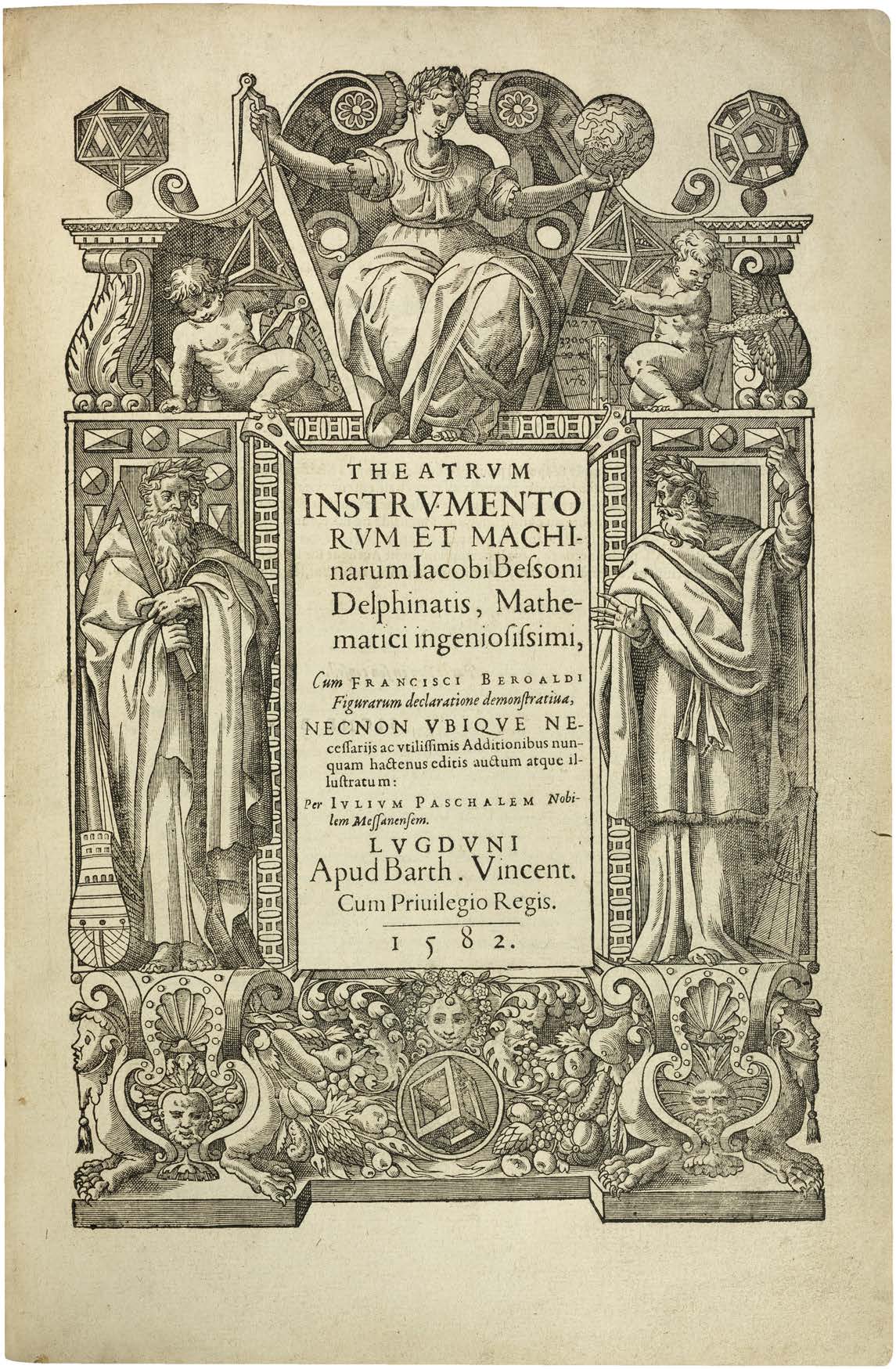

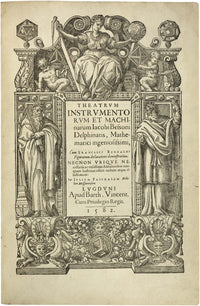

The title page itself functions almost as a manifesto of this ambition. At the summit sits the personification of Geometry, enthroned above classical scholars and surrounded by mathematical instruments, proclaiming geometry as the spiritual mother of all engineering.
Yet the work still belongs equally to the world of Mannerist imagination. The machines are not presented as purely functional technical diagrams but as theatrical inventions embedded within richly ornamented architectural and landscape settings. Renaissance engineering here remains inseparable from spectacle, artistic fantasy, and visual seduction.
Leonardo, Geometry, and the Birth of Engineering
The intellectual shadow of Leonardo da Vinci lies heavily over the book. Like Leonardo, Besson conceived machines not merely as tools but as manifestations of abstract geometrical thought. Several devices directly continue ideas associated with Leonardo’s notebooks, including advanced lathes and screw-cutting mechanisms employing lead-screw systems for mechanical precision.
Many of these inventions were extraordinarily ambitious and not always practically viable. Contemporary technological limitations often rendered the more sophisticated machines difficult or impossible to construct effectively. Even highly advanced screw-cutting devices capable in principle of producing long precision screws remained prohibitively expensive and technically unreliable in practice.
The result is precisely what gives the work its fascination today: a Renaissance vision of engineering poised between science, utopian imagination, and artistic experiment.
Du Cerceau and the Art of the Machine
For the drawings, Besson employed the architect Jacques Androuet du Cerceau, one of the great ornamental and architectural designers of the French Renaissance. The engravings were likely executed in his workshop under direct supervision by several collaborators.
The plates rank among the most beautiful engineering engravings of the sixteenth century. Considerable attention is devoted not only to the machinery itself but also to figures, architectural frameworks, rivers, gardens, bridges, and surrounding landscapes. The machines operate theatrically within fully staged environments rather than isolated technical space.
Particularly striking is the absence of military machinery. Unlike many contemporary engineering books dedicated to rulers, Besson’s work almost entirely avoids weapons and siege engines. Instead, it celebrates productive, civil, and intellectual applications of mechanics: milling grain, raising water, transporting goods, shaping materials, and organizing labor.
The Renaissance Theatre of Machines
The work belongs to the broader Renaissance genre of the “theatre of machines,” lavishly illustrated books that transformed engineering into a visual and intellectual spectacle. These books often displayed bizarre, oversized, or highly ornamental inventions less as practical manuals than as demonstrations of ingenuity itself.
Besson’s Theatrum is among the earliest and most influential examples of the genre. It reveals a world newly fascinated by movement, mechanics, artificial power, and the possibility of rationally redesigning material reality through mathematics and invention.
Literature
Adams B 839; not in Baudrier; BM STC French; Brun 122; Brunet I, 830; cf. Cioranesco 3775 (1578 edition); Dibner 173; Ebert 2066; Graesse I, 354; Lonchamp, Français II, 52; cf. Mortimer, French nos. 56–57 (earlier editions); Rahir 319; cf. Wheeler 61 (1578 edition).
On Rivière: Ramsden, London 123; Nixon 1979, p. 218.
For a fuller scholarly description and illustrations, see Wunderkammer Catalogue 90, number 63:
Wunderkammer Catalogue 90, Volume II
